Man Features
Modularized design, Flexible ports configuration, and support
any combination and up to 26 Gigabit ports
Uplink: 2xCombo (2x10/100/1000BaseTX + 2x1000BaseX SFP slots)
Downlink: Up to 24 gigabit ports, 8 fixed 100BaseFX/1000BaseX SFP slots+2 card slots
Proprietary Protocol "InMax Ring" (recovery time < 20ms),
RSTP,STP and MSTP for network redundancy
SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security
Support VLAN and QoS
Easy network management through web browser,CLI,Telnet/serial console,Windows
utility and SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power
inputs
Metal,IP40 protection
Optional front and rear wiring brings convenience for different wiring environment
Overview
The PT5626 series modularized Full Gigabit advanced managed Industrial Ethernet switch is equipped with up to 26
Gigabit Ethernet ports. The"InMax Ring" redundant ring (recovery time < 20ms),RSTP,STP,MSTP and 24VD or 48
VDC, 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your
communications.Optional front and rear wiring brings convenience for different wiring environment. AII these features
make PT5626 suitable for a variety of industrial applications
Features and Benefits Features and Benefits
Ports
·Uplink:
2xCombo (2x10/100/1000BaseTX + 2x1000BaseX SFP slots)
·Downlink:
Up to 24 gigabit ports, 8 fixed 100BaseFX/1000BaseX SFP slots+2 card slots
Card slots support any combination of 8SFP and 8TX two types of cards, 8SFP is full fiber optic 8 ports module
and 8TX is full electrical 8 ports module.
Comprehensive Security
·Support 802.1X authentication
·Support MAC address authentication
High Reliability
·Support Proprietary Protocol "InMax Ring" (recovery time < 20ms),STP,RSTP and MSTP
for network redundancy
·Support LACP to expand the bandwidth of a switch port,balance the traffic among all the
ports in link aggregation and enhance connection reliability.
Versatile QoS Policies
·0ffer powerful hardware ACL capability
·Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and
Weight Round Robin(WRR)
Management & Maintainability
·Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9
·Support inmax NMS for industrial networks providing centralized
Management,status monitoring and trouble shooting,auto-discovery and
auto-provision for incoming device
Standards:
IEEE802.3
IEEE 802.3u
IEEE802.3z
IEEE 802.3ab
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, DHCP Option 82, SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE802.3x flow control,back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 4094
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 2 Mbit
Interface:
Fiber ports:100FX / 1000-X SFP slots
RJ45 ports:10/100/1000 TX
Console port:RS-232(RJ45 connector)
Alarm Contact:
1 relay outputs with current carrying capacity of 0.5A@48VDC
Power Requirements:
Redundant dual inputs,A C-powered or DC-powered
Power 1: 24VDC (18-36V) or 48VDC (36-72V)
Power 2: 110,220VDC(88-300V) or 110,220VAC(88-300V)
Input voltage: 24VDC(18~36VDC)
48VDC(36~72VDC),
110/220VAC(88~300V)
Input current: 0.41A@24VDC,10W
0.21A@48VDC,10W
0.045A@220VAC,10W
Input current(Max): 1.83A@24VDC,44W
0.91A@48VDC,44W
0.2A@220VAC,44W
Power consumption: no more than 45w
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 5-contact terminal blocks
Physical Characteristics:
Housing: Metal,IP40 protection
Dimensions: 440 x 334 x 45mm
Weight: 4kg
Installation: 19-inch 1U rack installation
Environmental Limits:
Operating Temperature
Standard Models: 0 ~ +60°C (32 ~ 140°F )
Wide Temp. Models: -40 ~ +75°C (-40 ~ 167°F )
Storage Temperature: -40 ~ +85°C(-40 ~ 185°F )
Ambient relative Humidity: 5 ~ 95%(non-condensing)
Standards and Certifications:
Safety: UL 508,UL 60950-1,CSA C22.2 No,60950-1 and EN 60950-1
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level4,EN 61000-4-3 (RS) Level4,
EN 61000-4-4 (EFT) Level4,EN 61 000-4-5 (Surge) Level4,
EN 61000-4-6 (CS) Level4,EN 61000-4-8 Level4,
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

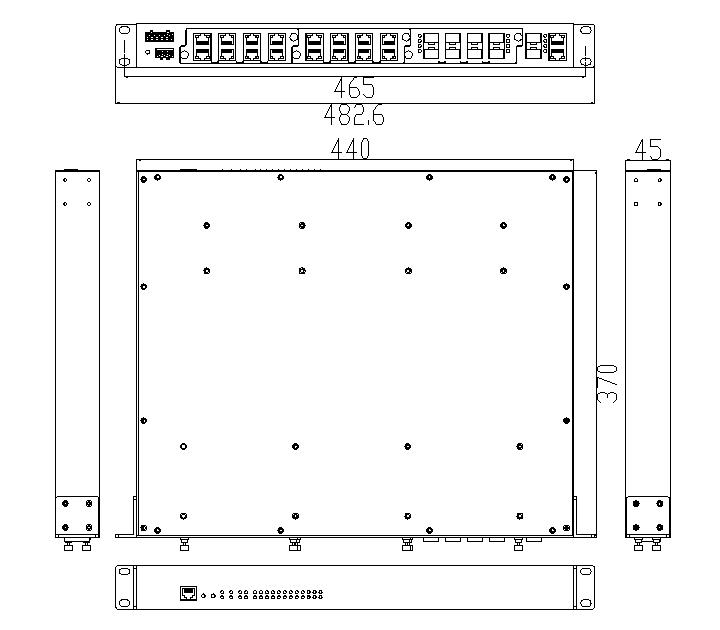

Dimensions
UNIT(mm)
Ordering Information
